Clarkson Knife Gate Valves

These valves are cost-effective solutions engineered specifically for slurry and abrasive applications in Mining and Mineral processing, Oil Sands, along with general applications in Pulp & Paper, Power, and other process industries.

Clarkson high performance slurry isolation and control valves have led the industry in elastomeric sleeve technology for 50 years. Valves come standard as self-purging bidirectional shut-off, ensuring repeatable positive isolation in critical applications.

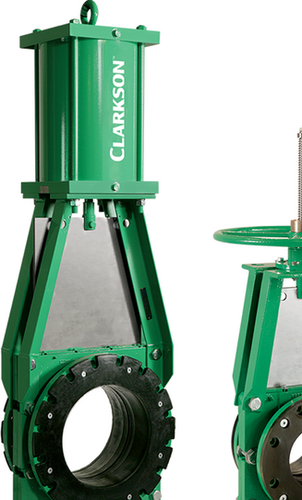

Clarkson Model KGA+ | Heavy Duty Knife Gate Valves

Features:

Improved secondary seal is capable of being lubricated without disassembly, implifying valve maintenance
Full flange body design with available flange drilling including ASME B16.5, PN10 and PN16 (per DIN & BSstandards) among others
Simplified two-piece body design allows for easier rebuilds
Higher optional pressure rating possible on selected gate materials, many KGA+ valves can be rated up to 200 psi
Meets a wide range of abrasion, corrosion, temperature, and pressure requirements
Can be used in wet or dry services easily dealing with large, heavy particles and tramp material

Technical Data:
Size Range: NPS 3-60 (DN 80 to 1500)
Temperatures: Standard sleeve rated to 180°F (80°C), up to 400°F
(204°C) with proper elastomer selection

LEARN MORE

Clarkson Knife Gate Valves

Spartan is your exclusive Clarkson authorized vendor for OEM valve assemblies and replacement parts in BC, Alberta, and Saskatchewan.

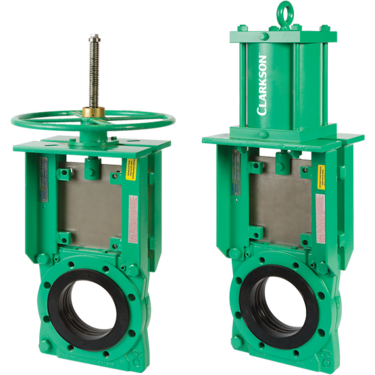

Clarkson Model KGD | Slurry Knife Gate Valves

Clarkson Model KGA+ | Heavy Duty Knife Gate Valves

Inventory

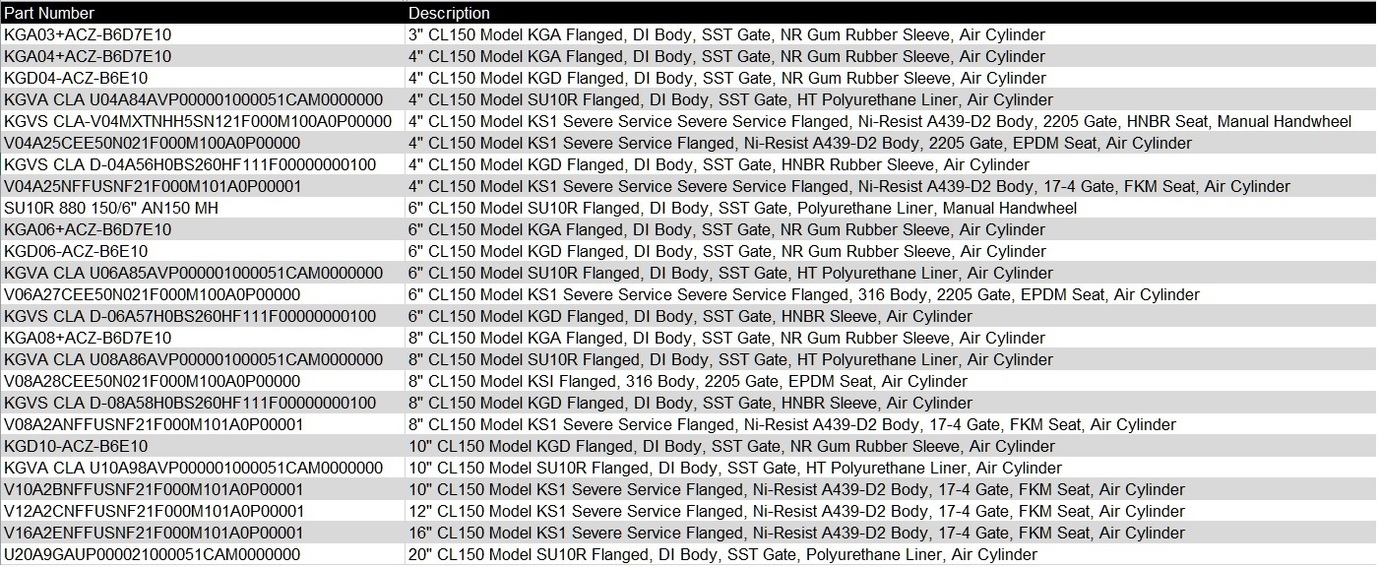

Here is a list of Clarkson KGD & KGA+ Knife Gate Valve stock that is regularly available at select Spartan locations. The local service centers have capabilities to repair, refurbish, and automate existing valves.

Featured Products & Solutions

Get in touch with a Clarkson expert!
