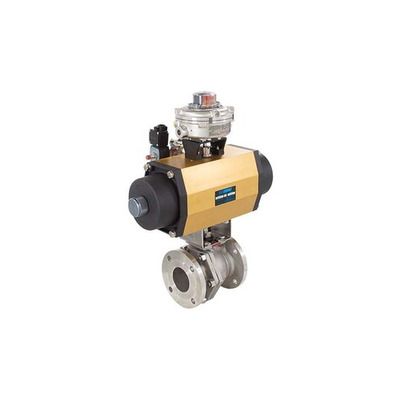

GlobeValve Limited's VCI Gas Shut Off Valve | CSA/FM VCI Floating Ball Valves
VCI developed a unique “Live Loaded” seating ball valve design to guarantee shutoff integrity at low temperatures (-40ºF), and low to variable pressures for natural gas applications.

CSA/FM Automatic Safety Shut-Off Valves (Emergency Safety Shut-Off Valves) feature a springing action that will close the valve automatically when a system failure is detected. When there is a failure, the valve is de-energized. The valve remains closed until the fault is cleared from the system. The CSA/FM is agency and factory certified.
VCI Gas Shut Off Valve

Specs

Basic Design
ASME B16.34
Sizes
1/2″-8″ Full Bore & Regular Bore
Pressures
ANSI Class 150-300
Materials
Ductile Iron, WCB, LCB, CF8M & Alloy 20
Ends
RF, NPT, SW, BW
Fire Safe Certified
API 607 4th Edition

Features

  • One Piece End Entry, Two & Three Piece Side Entry
  • Fire Safe Certified
  • Floating Ball
  • Antistatic Device
  • Locking Device
  • Blowout Proof Stem
  • Live Loaded Seats
  • Bi Directional and Uni Directional
  • NACE
  • To -50 °C / -58 °F Fully CSA Certified Actuated Units
  • To -60 °C / -76 °F Fully CSA Certified Manual Valves
