OmniSeal expanding plug valves are designed for applications where positive shut-off, verifiable zero leakage and double block and bleed (DB&B) and or double isolation and bleed (DIB) capabilities are required.
They are ideal for a variety of applications including leased automated custody transfer (LACT), product metering, aviation fueling, product isolation, blending, lockout/tagout (LOTO), multi-product manifolds, tank storage and other DB&B applications. The OmniSeal is a single valve solution that simultaneously blocks both the upstream and downstream flow while allowing the user to verify seal integrity using a manual or automatic body bleed system. It replaces older double block and bleed systems that use two valves with a spool and bleed valve in[1]between. OmniSeal valves have exclusive features designed for better performance throughout the valve’s lifetime.

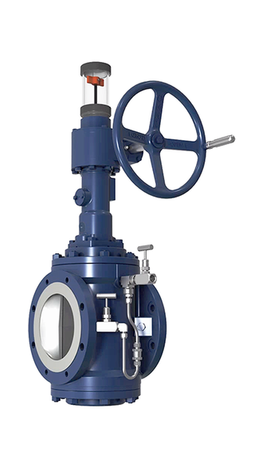

OmniSeal Expanding Plug Valve

Specs

Sizes
NPS 2” to 36”
Pressure Ratings
ASME 150CL to 900CL
Temperature Range
-49F to 400F / -45C to 204C
Design Standards
API 6D and ISO 9001, API 607 and API 6FA, CE/PED, CRN (Canadian Registration), TA-Luft

Features

  • OmniSeal expanding plug valves are ideal for applications that require positive shut-off, verifiable zero leakage and double block and bleed (DB&B) and or double isolation and bleed (DIB) capability. Some of the more common applications include :
  • Blending Units: Accurate blending of ethanol or other regional fuel grades requires valves with exceptionally high seal integrity to ensure accurate measurement of additives and blending stocks. The OmniSeal DB&B is specifically designed for these type of applications.
  • Product Isolation: Secure isolation of biofuels or other process-sensitive fluids is critical for environmental and process safety. The OmniSeal DB&B’s verifiable zero leakage and positive shutoff capabilities make it an ideal solution for isolation and process-sensitive applications.
  • Multi-Product Manifolds: Pipeline, refinery and transfer manifolds need to flow multiple products (e.g. diesel, jet fuel, gasoline, blending stocks, etc.) reliably and without contamination. The OmniSeal DB&B is an effective tool for preventing product cross-contamination.
  • Prover Loops: Proper calibration of flow meters requires that every valve in the prover loop system must have a zero leak rate. Any leak could mean an error in calibration. OmniSeal DB&B valves are used to ensure leak tight closure and accurate calibration.
  • Custody Transfer Units: Transfer of valuable media relies on accurate measurement of product transfer quantity. The OmniSeal DB&B provides positive shutoff and zero leak rate, thereby ensuring the accuracy of transfer quantity calculations.
  • Offshore Platforms: Valve leakage on an offshore platform can result in damage to equipment and the environment. The OmniSeal DB&B has excellent low pressure positive shutoff characteristics and is a great choice for use on offshore platforms.
  • Terminals: Terminals used for loading and unloading tankers require valves with positive sealing in order to prevent environmental damage due to spillage. The OmniSeal DB&B provides positive sealing and zero leak rate in a reliable single valve solution.
  • Tank Farms (Oil Depots): Tank isolation valves, which are operated frequently, require zero leak rate and a high degree of reliability. The OmniSeal DB&B valve provides a reliable, high integrity seal designed for frequent and long-term use.
  • Aviation Fueling Systems: Airport fueling systems require valves that close quickly and have verifiable seal integrity. This allows for quick maintenance, repair, leak location and testing. The OmniSeal DB&B valve’s verifiable zero leak rate ensures that maintenance, repair, leak location and hydrant testing can be done safely and quickly. OmniSeal DB&B expanding plug valves have been determined to be a “Product of the USA “ by the US Customs and Border Protection Agency (CBP). This applies to both commercial and US government or military procurement
