The ball of trunnion mounted configuration is supported by bearing plates hold by the end adaptors.
In such a way the pressure loads are transferred to the valve body granting a smooth rotation of the ball with low torque levels and reduced seat seal wear.

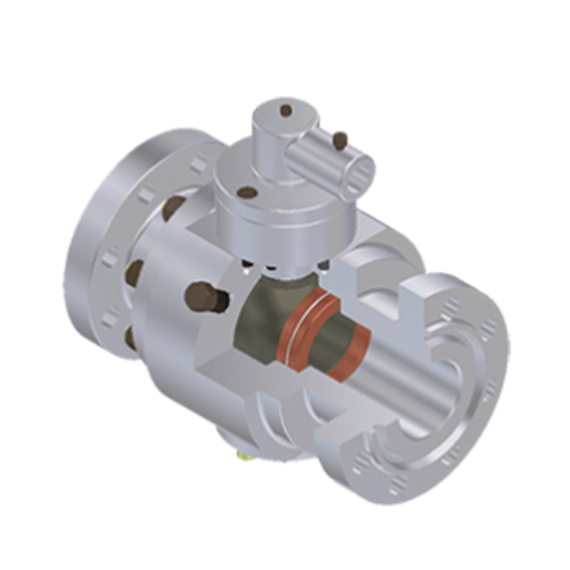

PERAR Trunnion Mounted Bolted Body Side‐Entry Ball Valves represent the basic design standard.
They are manufactured in a wide range of sizes and pressure classes typically from forgings.
- API 6D, API 6A design
- Full Bore and Reduced Bore design
- Flanged or Welding Ends
- Spring loaded floating seats
- Bi‐directional sealing
- Anti blow‐out stem
- Anti static device
- Heavy duty bearings
- Double Block & Bleed design
- Fire safe design
