The design of the ball valves series BVA is based on more than 30 years of application experience with lined ball valves.
They provide an excellent ratio of economic and operational performance in a wide variety of process applications.

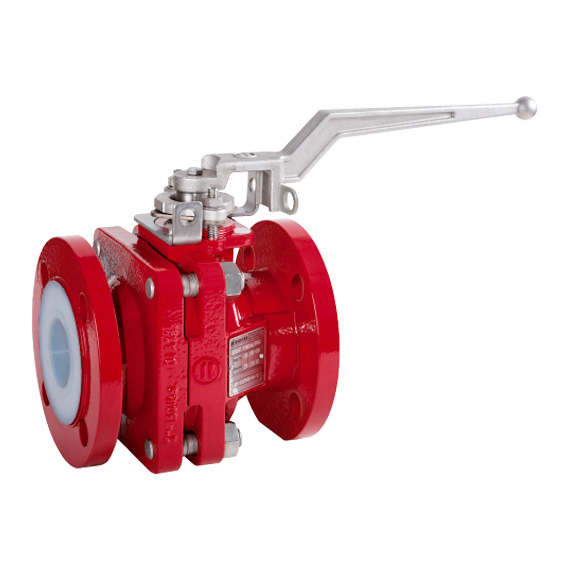

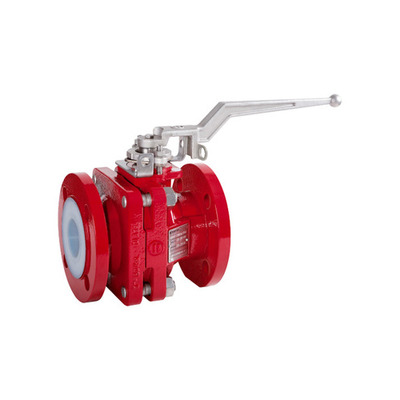

Richter BVA Standard Duty Ball Valves (ASME)

Specs

Design
ASME
Nominal Pressure
Class 150
Lining
PFA
Housing Material
EN-JS 1049
Face-to-Face
ASME B16.10, Class 150 column 19
Flanges
ASME B16.5, class 150, raised face
Temperature Range
-60 °C to +200 °C (-75 °F to +400 °F)
Certifications
EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), SIL

Features

  • Excellent ratio of economic and operational performance, for the use in a wide range of process applications
  • Maximum reliability: one piece ball/stem unit avoids weak spot ball to stem
  • Universally applicable: many options in combination with a thick-walled PFA lining
  • Efficient alternative to plug valves
