Winters PPC Process Pressure gauges are ideally suited for process, chemical, petroleum and power industries.
They are suitable for non-clogging corrosive media and are used where operator safety is a requirement.

Winters PPC process gauge, available in 4.5-inch (115 mm) dial size with black phenolic case with pressure relief back, solid front. Available in a variety of pressure ranges, with either stainless steel or brass internals. This model is ASME B40.100 compliant, CRN registered and features a 5-year warranty

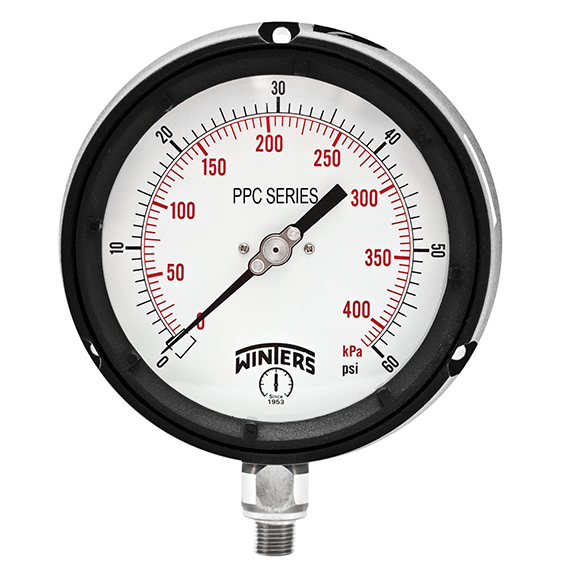

Winters PPC Process Pressure Gauge

Specs

Connection
1/4” NPT or 1/2” NPT standard, bottom or back
Process Temperature
-40°F to 250°F (-40°C to 120°C)
Accuracy
±0.5% ANSI/ASME Grade 2A
Enclosure Rating
IP65

Features

  • Solid phenolic front and polypropylene pressure relief back safety case
  • Field liquid-fillable (bottom connection only)
  • ±0.5% accuracy
  • Stainless steel full rotary movement for longer life
  • Micrometer adjustable pointer for ease in calibration
  • Under and overload stops
  • 316L stainless steel, brass, Monel® wetted parts
  • Restricted orifice standard on dual scale (optional on single scale)
  • ASME B40.100 compliant
  • CRN registered
