Rosemount™ 5300 Level Transmitter - Guided Wave Radar

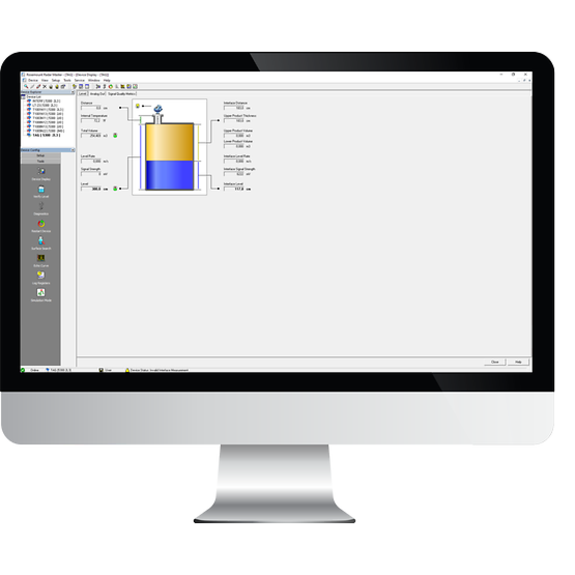

Rosemount™ Radar Master - Software
Rosemount™ Radar Master - Software
Download Now (125 MB)
rosemount 5300 gwr transmitter
The Rosemount 5300 Level Transmitter is ideal for challenging measurements on liquids, slurries, and solids, offering state of the art reliability and safety features in level and interface applications.
Rosemount 5300 offers several advantages such as easy installation, no need for calibration, and is unaffected by process conditions. Also, it is SIL 2 certified making it your first choice for safety applications. It has a robust construction and features powerful built-in diagnostics allowing you to focus on the essential part - your plant.

How To Perform a Remote Partial Proof-Test with the Rosemount 5300 Level Transmitter

Play Video

Comprehensive, Fully Remote Proof Test with the Rosemount 5300 Using Verification Reflectors

Play Video
Rosemount™ 5300 Level Transmitter - Guided Wave Radar

Specs

Accuracy
± 0.12 in. (3 mm)
Communication Protocol
4-20 mA/HART™, Foundation™ Fieldbus, Modbus™
Diagnostics
Enhanced diagnostics enabling proactive maintenance
Measurement Range
Up to 164 ft (50 m)
Operating Pressure
Full vacuum to 5000 psi (Full vacuum to 345 bar)
Operating Temperature
-320 to 752 °F (-196 to 400 °C)
Probe Types
Rigid single lead, Segmented single lead, Flexible single lead, Coaxial and large coaxial, PTFE coated probes, Vapor probe
Repeatability
± 0.04 in. (1 mm)
Safety
SIL 2 IEC 61508 certification
TÜV tested and WHG approved for overfill prevention
Remote proof-test capabilities through verification reflector
Warranty
Up to five years

Features

  • Suitable for Challenging Applications: Guided Wave Radar sends the radar signal down a probe in contact with the media, delivering strong and stable echoes in challenging applications that include foam, vapor, turbulence, low dielectric products, or confined geometries.
  • Reliable Measurement Across All Media: Provides reliable level readings in liquids, solids, slurries, and interface applications, even when conditions vary. Direct Switch Technology enhances signal strength for improved sensitivity, longer measurement ranges, and higher reliability.​
  • Advanced Diagnostics: Signal Quality Metrics reveal coating, buildup, turbulence, or echo degradation early, while remote proof‑testing enhances safety and reduces manual intervention.​
  • Accurate in Saturated Steam: Dynamic Vapor Compensation automatically corrects for saturated steam effects, reducing errors and improving heat‑rate efficiency in high‑pressure steam applications.​
  • Compatible with Bypass Chambers and Magnetic Level Indicators: easily isolate transmitters from processes for live maintenance without interrupting operations with bypass chambers, and obtain highly visible level indication with magnetic level indicators.
