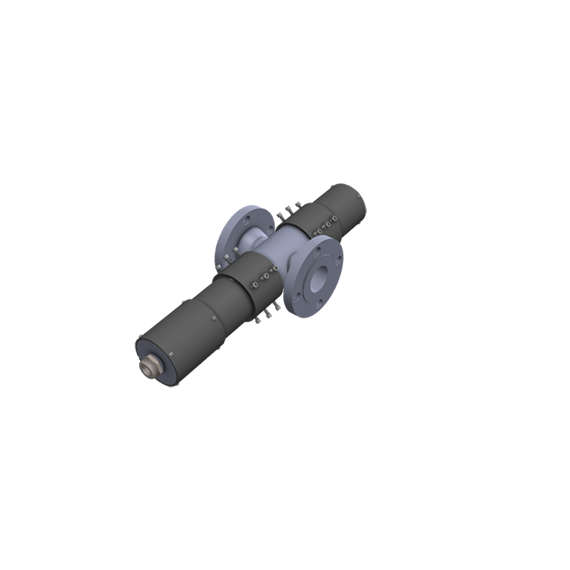

Boreal Laser Based – In-Line Gas Measurements

Name: Boreal Laser Based – In-Line Gas Measurements
Brand: Boreal

Laser Based – Fixed Point Gas Detection is an Enhanced Sensing Element that thrives where Traditional Gas Detection technologies do not survive.

The Remote Point (RPX) Probe used with Boreal Laser’s line of GasFinder3 Based Instruments is primarily used in process monitoring & control applications for its quantitative performance in difficult applications, fail-safe design for safety critical applications, and its maintenance friendly operation.

Specs

Hazardous Area Certification:

(A)Ex ib IIC (T5) Tamb <70°C Gb (Equivalent to Class 1 Zone/Division 1, Groups: A,B,C,D)

Operating Temperature:

-45 to 70°C (-49 to 158°F)

Process Connection:

1 to 3” 150# Raised Face Flange Bolt-Up Patterns Available

Power & Communication:

24 VDC, HART 7 (over 4-20mA), Dry-Contact Relays, and MODBUS

Beam Block:

Operates down to 97% Obscuration (40x Turndown) with Status Indication and Time Delay

Warranty:

Ten (10) Years on Laser Light Source and Three (3) Year Standard Warranty

Features

Challenging Applications: Ideal for high temperature, high humidity, and high/continuous gas exposure applications
Robust Light Source: Long-lasting Near Infrared laser light source used as sensing element
Maintenance Friendly: Due to the Internal Reference Cell, there is no field calibration or intervention required or available
Speed of Response: New and independent result every single second
Fail-Safe Design: Sophisticated diagnostics with no undisclosed failure modes
