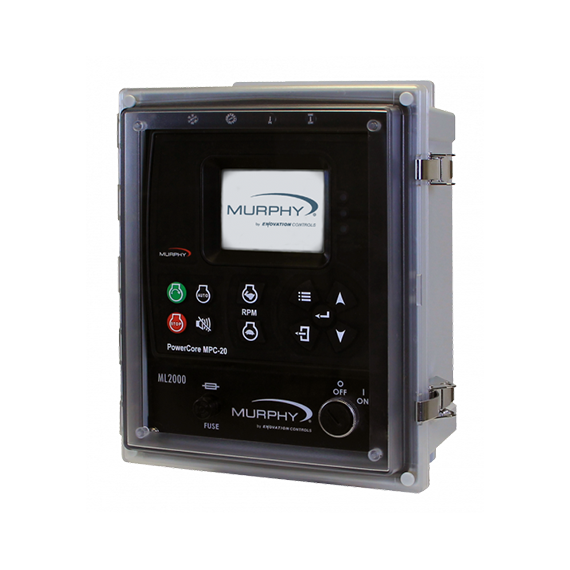

Enovation ML2000

Enovation’s ML2000 control panel series incorporates all the power and functionality of the PowerCore® MPC-20 Controller in a panel solution for most any engine-driven application.

The ML2000 panel series features polycarbonate, metal enclosure or flat panel options and standard harnessing for most major engine manufacturer ECUs. It is built to withstand harsh environments and features an out-of-the-box, fully sealed, powerful all-purpose industrial controller. ML2000 is Tier 4 / Stage IV ready and is easily viewable in full-sun conditions with a large 3.8-inch easy-to-read, monochrome transflective LCD. It is engineered for incredibly easy initial setup and is configurable by the user to meet the most versatile applications, allowing for quick uptime and less headaches on the manufacturing floor or in the field.

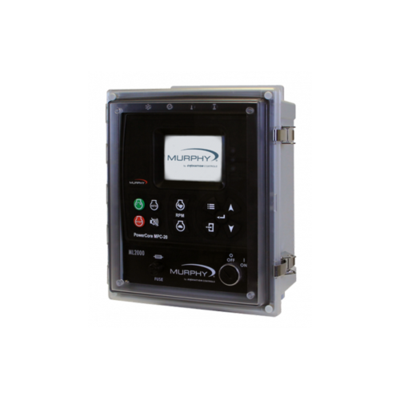

Enovation ML2000

Specs

Controller:
MPC-20
Operating Voltage:
8-32VDC
Total Current Consumption:
18W Max without 2 2A High-sides active
146W Max with 2 2A High-sides active
Operating Temperature:
-40° to +85°C (-40° to 185°F)
Storage Temperature:
-40° to +85°C (-40° to 185°F)
