Profire PF200 BMS

The Profire PF2200-SB BMS controller has been specifically designed to enhance the performance and control of a wide array of natural draft, single burner applications.

The PF2200-SB delivers the most powerful, yet simple user experience possible.

Core applications:

  • Gas productions unit
  • Treaters
  • Heated Tanks
  • Amine reboilers
  • Glycol dehydrator
  • Line heaters

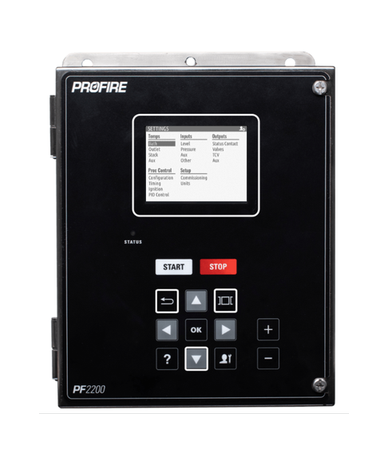

Profire PF2200 Burner Management System

Specs

Power Input
12/24VDC Input
Temperature Rating
-40°F to +131°F (-40°C to +55°C)
Enclosure Construction
304 Stainless Steel
Environmental Protection
IP66 / Type 4x
Safety Integrity Level
SIL2 Capable
Hazardous Location Rating
Class I Div 2 Group ABCD; T4A / Class I Zone 2 Group IIC (US)

Features

  • Intuitive user interface and experience
  • Comprehensive diagnostics and event logging
  • Integrated Modbus and data logging
  • Advanced PID and soft start: dedicated TCV output
  • Settings back-up and restore for quick commissioning
  • 4 configurable temperature inputs: Thermocouple, RTD, 4-20mA supported
  • Two configurable 4-20mA outputs
  • 4.4″ always on display
  • Ultra low power consumption
  • Single and dual pilot ready
  • UV flame detection
