BurnerPRO provides the proper burner sequencing, ignition and continuous flame monitoring for commercial heating and process equipment firing oil and gas fuels.


BurnerPRO controls are the ideal solution for both new installations and retrofit of Siemens LFL controls.  Many BurnerPRO models are functionally compatible with select Siemens LFL control models and can use the existing wiring base with no external wiring changes.  The controls are also compatible with Satronic TMG controls with minor wiring changes.

The system is designed for use in non-permanent operations that requires burner recycle at least once every 24 hours. Seven SMART LEDs provide current operating status and lockout information in the event of a safety shutdown.

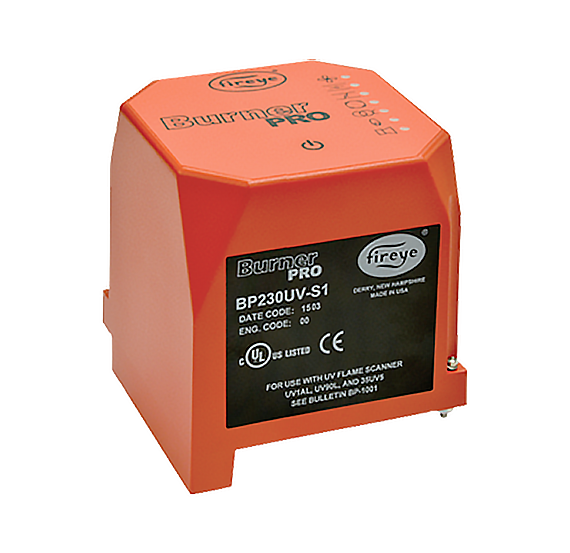

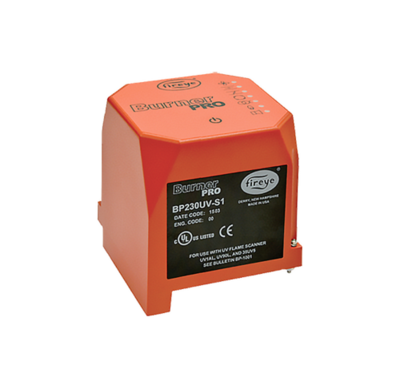

BurnerPRO Flame Safeguard

Specs

Supply Voltage
BP110UVF 110 VAC (+20%, -15%) 50/60Hz, BP230UVF 230 VAC (+10%, -15%) 50/60Hz
Power Consumption
7 VA
Temperature Rating
Operating -40 to 60 degrees Celsius, Storage -50 to 85 degrees Celsius
Protection Category
IP44
Control Unit Dimensions
4.15" (105mm) L x 4.15" (105mm) W x 5.0" (127mm) H (with base)
Weight
2.5 lbs (1.13kg)
